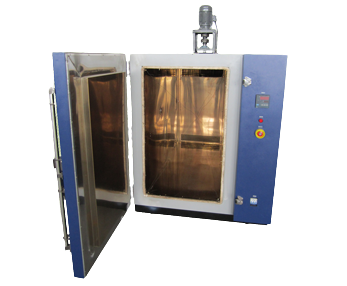

HOT-1100YVCF Special High Temperature Chamber
High temperature ovens used for an array of different reliability tests requiring extreme high temperatures. Customizable to you specifications
- PC Link and MODBUS communication
- Stainless Steel #304 interior
- Digital display controller
- 2″ Cable access port w/ plugs
| Specification | Specification in US | Specification in Metric |
|---|---|---|
| Interior Dimension | 25.59W x 55.12H x 63.0D Inch | 650W x 1000H x 1600D mm |
| Exterior Size | 46.85W x 59.84H x 86.61D Inch | 1190W x 1520H x 2200D mm |
| Temp Range | 68˚F (Room) ~ 660˚F | 20˚C ~ 350˚C |
| Temp Constancy | ≤ ±1.8ºF | ≤ ±1.0ºC |
| Temp Uniformity | ≤ ±7.2ºC | ≤ ±4.0ºC |
| Weight | ~880 Lbs | ~400 Kg |
| AC Power | 220VAC / 60Hz / 3-Phase / 35A / 12Kw |
