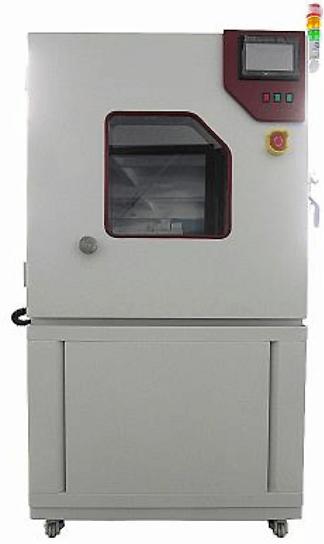

HST-512/1000/1620/1920-PS Settling Dust Chamber
HST-512/1000/1620/1920-PS Settling Dust Chamber
Based on the IEC 60529, IEC68-2-68(Method La2) settling dust testing standards.
- Control Panel for Temperature, Humidity, and Timer
- High pressure circle air fan
- Safety features include Door Open, Pump Overload, Over current, and Emergency Stop
| Specification | Specification in US | Specification in Metric |
|---|---|---|
| Temperature Range | Room | Room |
| Interior Dimension | 19.7W x 19.7H x 19.7D Inch | 500W x 500H x 500D mm |
| Exterior Dimension | 31.5W x 59.1H x 27.6D Inch | 800W x 1500H x 700D mm |
| Dust Input | 0.13 lb/ft³ | 2.0 Kg/m³ |
| Door | 19.7 x 19.7 Inch | 500 x 500 mm |
| Observation Window | 11.8 x 11.8 Inch | 300 x 300 mm |
| Power Source | 220VAC / 60Hz / 1.2A / 0.3KW | 220VAC / 60Hz / 1.2A / 0.3KW |
