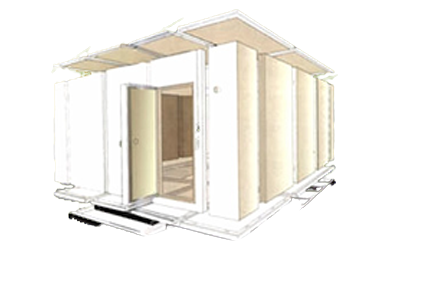

Solar Test Chamber
Well built, long lasting test chambers that meet/exceed the existing international standards required for the testing of Solar Panels, Solar Modules and other Solar Products, with unique, uniform airflow systems.
Specially designed Solar Panel/Product Testing chambers meeting the IEC requirements for:
Thermal Cycling Test [-40°C ~ +85°C]
Humidity Freeze Test [+85°C / 85% RH; -40°C]
Damp Heat Test [+85°C / 85% RH – 1000Hrs]
Nviro Solutions has been producing standard sizes of chambers based on the requirements of the Solar Industry as well as custom built chambers to meet unique customer sizes and specifications.
- Unique, uniform airflow system
- Fin Heat Disperse-Stainless Steel Heater
- Swiss made Temp-Hum Sensor
- Sirocco Fan
- PID controlled-Stainless Steel Humidifier
- Half-Hermetic, Cascading-Bitzer-German Model Compressors
- Dupont Type [No Fluorine] Refrigerant
- Carpace-Water Type Condenser
- Multi-segment, Automatic Adjustment Evaporator
- High Efficiency Temperite Type, US Made Oil Separator
- UMC1200 Series of LCD Display Color Touch Screen Programmable LCD Controller
- Stainless Steel Interior Material
- Stainless Steel [Baked Panel] Exterior Material
- Dual Doors
- Dual Windows with Anti Condensation, Frost Free
- Cable Ports with Plugs
- Water Tank- Auto Operation
- Pure Water Generating System
- Anti-explosive Interior Lamps
- Fire Protector
- Fast Recovery Fuses
- Compressor Overload Protect
- High Pressure Protect
- Phase Reversal Protect
- Circuit Breaker System
- Lack of Water Detector
- Humidifier Overshoot Protector
- Emergency Stop Switch
- Alarms
| Specification | Specification in US | Specification in Metric |
|---|---|---|
| Size | 78.7W x 98.4H x 142D IN [Other Sizes Available] | 2000W x 2500H x 3600D mm [Other Sizes Available] |
| Temperature Range | -58 °F to +194 °F | -50 °C to +90 °C |
| Temperature Constancy | ±0.9 °F | ±0.5 °C |
| Temperature Uniformity | ±3.6 °F | ±2.0 °C |
| Humidity Range | 30 to 95% RH | 30 to 95% RH |
| Humidity Constancy | ±2.5% RH | ±2.5% RH |
| Humidity Uniformity | ±5.0% RH | ±5.0% RH |
| Heating Rate | 2.7 °F / Minute [-40 °F to +185 °F] | 1.5 °C / Minute [-40 °C to +85 °C] |
| Cooling Rate | 2.16 °F / Minute [+185 °F to -40 °F] | 1.2 °C / Minute [+85 °C to -40 °C] |
| Weight | Approximately ?? lbs | Approximately ?? Kg |
| AC Power Sources | 480VAC/60Hz, 380VAC/50Hz, etc. | 480VAC/60Hz, 380VAC/50Hz, etc. |
